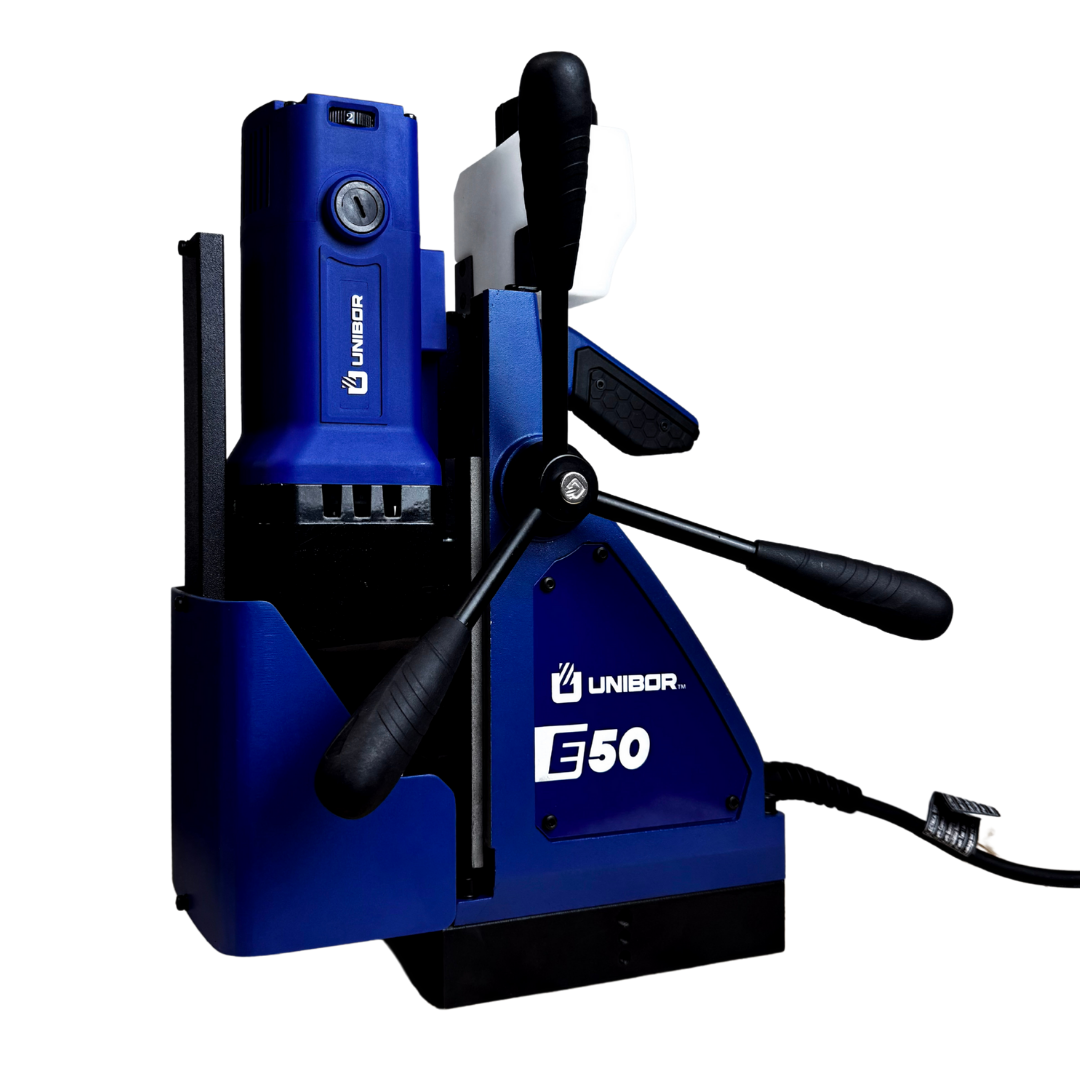

Unibor E50 Magnetic Drilling Machine

In stock
Regular price Dhs. 5,550.00

Warranty

    6 months

    Specification

      Cutter Capacity: 50mm
      Depth of Cut: 50mm
      Twist Drill Capacity: 20mm
      Morse Taper: MT2
      Countersink: 30mm
      Tapping: M20
      No Load Speed: 100 - 500RPM
      Motor Specification: 1500W
      Magnet Adhesion: 13500N
      Length: 315mm
      Height: 586mm
      Width: 195mm
      Magnet Size: 200 x 98mm
      Weight: 15kg
      Motor: 230V
      Stroke: 140mm

      Standard

        Carry Case; Internal Coolant System;
        16mm Chuck; Arbor Assembly - 6mm
        Hexagonal Spanner; Safety Glasses; Arbor
        Shank; Drift; Safety Strap; 3mm Hexagonal
        Spanner; Stationery Rings; Pilot Pin

        Introducing our powerful mag drill with a 1500W motor and two-speed gearbox, weighing 15kg with CutSmart Technology for enhanced longevity. The quick-release handle allows for easy operation from either side, while internal cabling minimizes damage risk. An integrated cooling system prevents overheating, and reversible features enable tapping. With a 13mm chuck for twist drilling and countersinking up to 30mm.

        Features
        • CUTSMART Technology for safe and efficient working
        • Fitted with ELECTRONIC overload protection
        • Minimise machine damage and prevent magnetic drill downtime with Internal CABLING
        • Tool-free QUICK Release interchangeable handle
        • Detect unsafe levels of magnetic adhesion with MAGNETIC Detection
        • Variable SPEED for larger diameter cutting, providing maximum versatility
        • 2 Speed GEARBOX ideal for optimal speed changes on HSS and TCT cutters


        Content

        • Vendor Unibor
