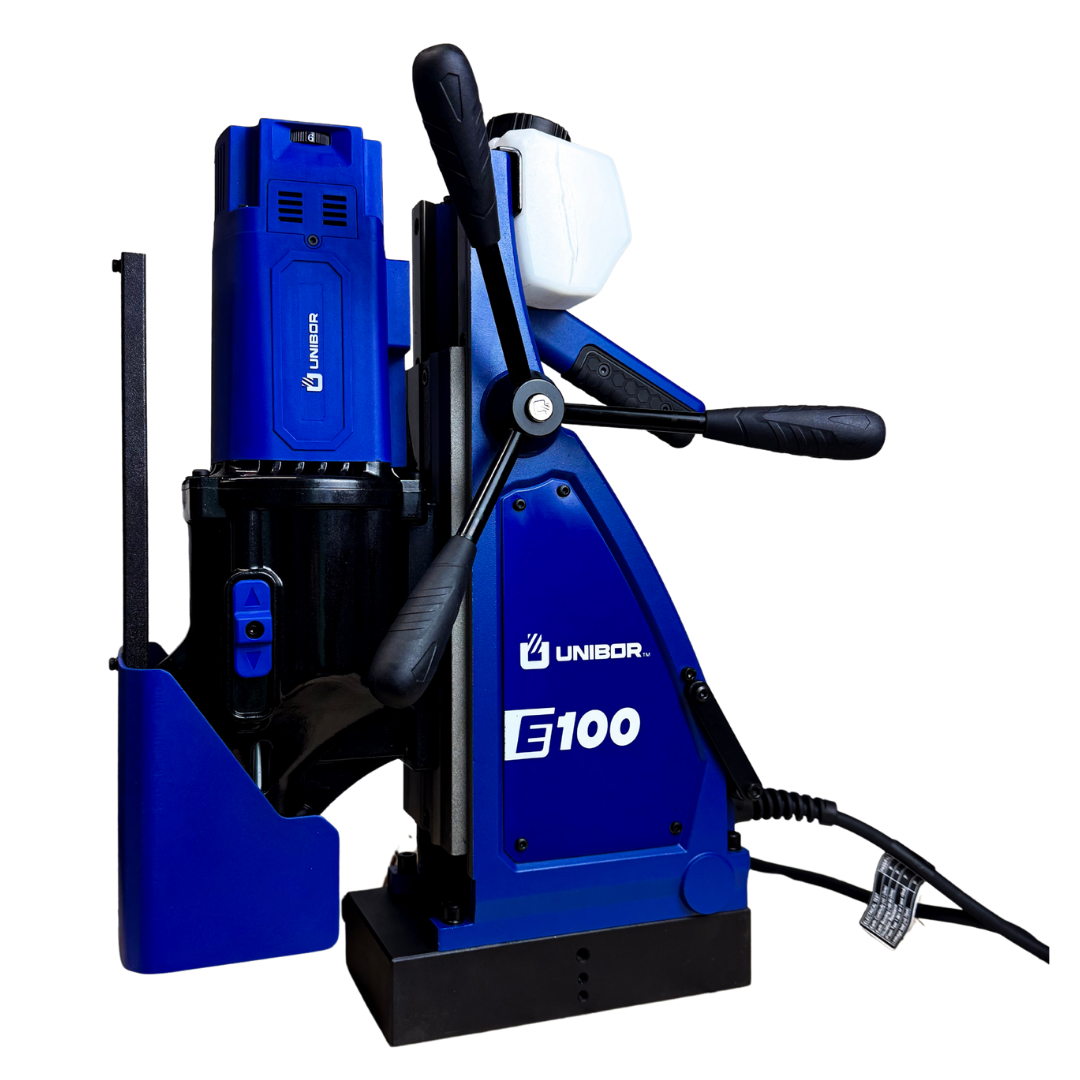

Unibor E100 Magnetic Drilling Machine

In stock
Regular price Dhs. 8,250.00

Warranty

    6 months

    Specification

      Cutter Capacity: 100mm
      Depth of Cut: 100mm
      Twist Drill Capacity: 32mm
      Drill Chuck Capacity: 16mm
      Morse Taper: MT3
      Tapping: M30
      No Load Speed: 45 -700RPM
      Motor Specification: 2000W
      Magnet Adhesion: 20000N
      Length: 370mm
      Height: 733mm
      Width: 230mm
      Magnet Size: 228 x 114mm
      Weight: 25kg
      Motor: 230V
      Stroke: 200mm

      Standard

        Carry Case; Internal Coolant System;
        16mm Chuck; Arbor Assembly - 6mm
        Hexagonal Spanner; Safety Glasses; Arbor
        Shank; Drift; Safety Strap; 3mm Hexagonal
        Spanner; Stationery Rings; Pilot Pin

        The E100 is our largest machine, featuring a powerful 2000w motor and a four-speed gearbox. Dual motor protection to minimise wear and downtime.

        Features
        • CUTSMART Technology for safe and efficient working
        • Fitted with ELECTRONIC overload protection
        • Minimise machine damage and prevent magnetic drill downtime with Internal CABLING
        • Tool-free QUICK Release interchangeable handle
        • Detect unsafe levels of magnetic adhesion with MAGNETIC Detection
        • Variable SPEED for larger diameter cutting, providing maximum versatility
        • 4 Speed GEARBOX ideal for optimal speed changes on HSS and TCT cutters


        Content

        • Vendor Unibor
