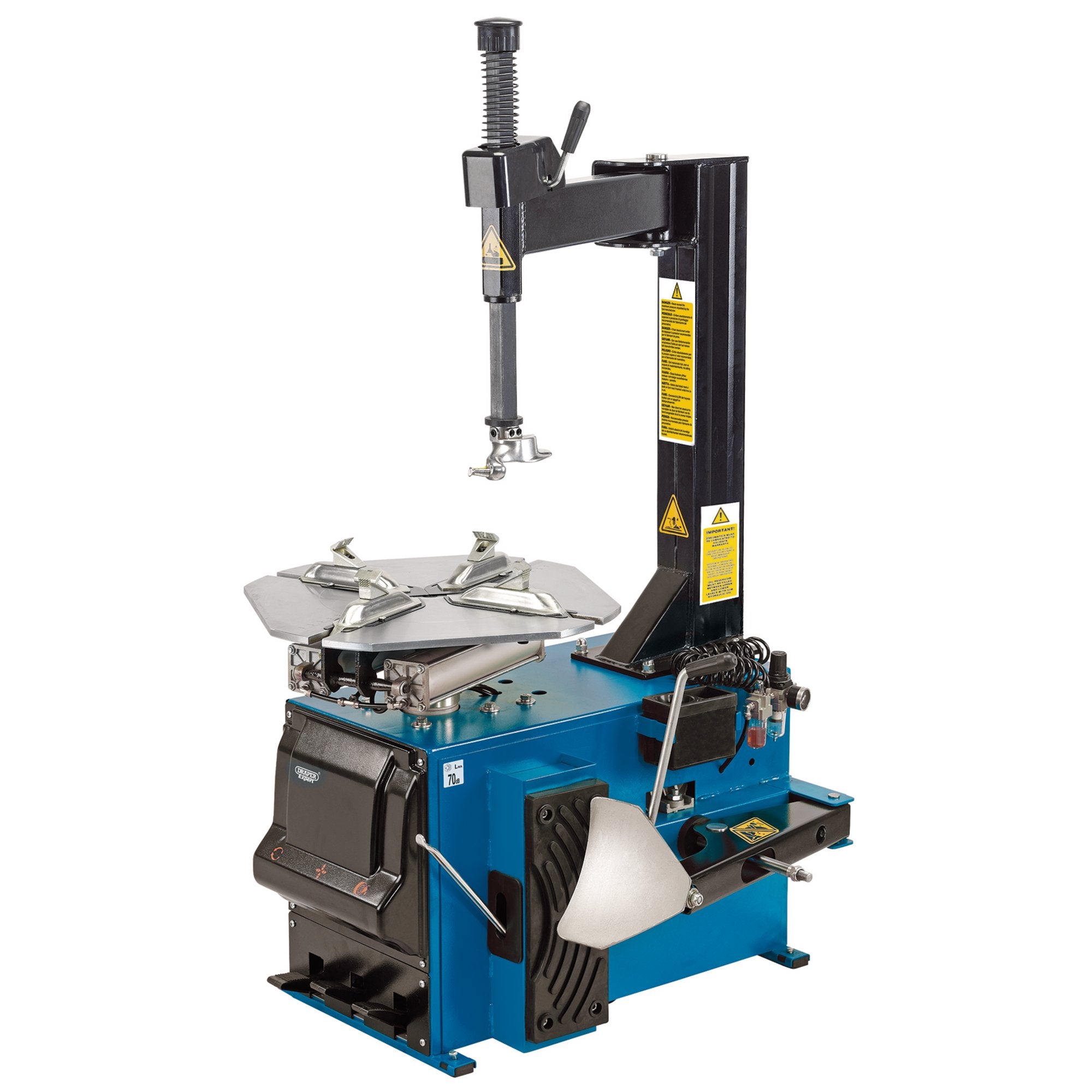

Semi Automatic Tyre Changer

In stock
SKU: 81645
Regular price Dhs. 37,416.30
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      Bead Breaker Force: 2100kg
      Dimensions: 1740mm x 950mm x 760mm
      Max Tyre Outside Diameter: 40" (1000mm)
      Motor: 1.1kW
      Pneumatic Supply: 90-115psi (6-8BAR)
      Power Supply: 230V
      For Rim Diameter (Internal Locking): 13" to 23"
      Suitable For Use On Wheel Width: 3" to 14"
      Weight: 180kg

      Standard

        Expert Quality, semi automatic tyre changer, capable of removing and replacing tyres on wheels up to 23". The fully motorised turntable, pneumatically operated clamping jaws and powerful pneumatic bead breaker enables the changing of conventional tyres quickly and easily. The self centring four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated by a standard 13amp 3 pin plug and the mounting arm swings to the side, allowing the machine to be installed directly near a wall, perfect for those with limited working space. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

        Features
        • Expert Quality
        • Semi automatic tyre changer capable of removing and replacing tyres on wheel up to 24"
        • Fitted with a fully motorised turntable, pneumatically operated clamping jaws and powerful pneumatic bead breaker
        • The self centring four jaw chuck is controlled by two clamping cylinders ensuring the rim is always correctly clamped
        • Alloy rims are treated especially gently as the mounting head is provided with plastic protectors
        • The bead breaker is provided with a large anti-skid rubber pad to preserve tyres and rims
        • The machine is operated by a standard 13amp 3 pin plug
        • The mounting arm swings to the side so the machine can be installed directly near a wall, perfect for those with limited working space
        • Supplied with the following accessories: tyre lever, filter unit, alloy rim protectors, head tongue protectors and inflation gun and air hose
        • Installation is included in the price for hassle-free set up. Postcode restrictions apply.
        • Active


        Content
        1 x Semi Automatic Tyre Changer

        • Vendor Draper Expert
        • SKU 81645
