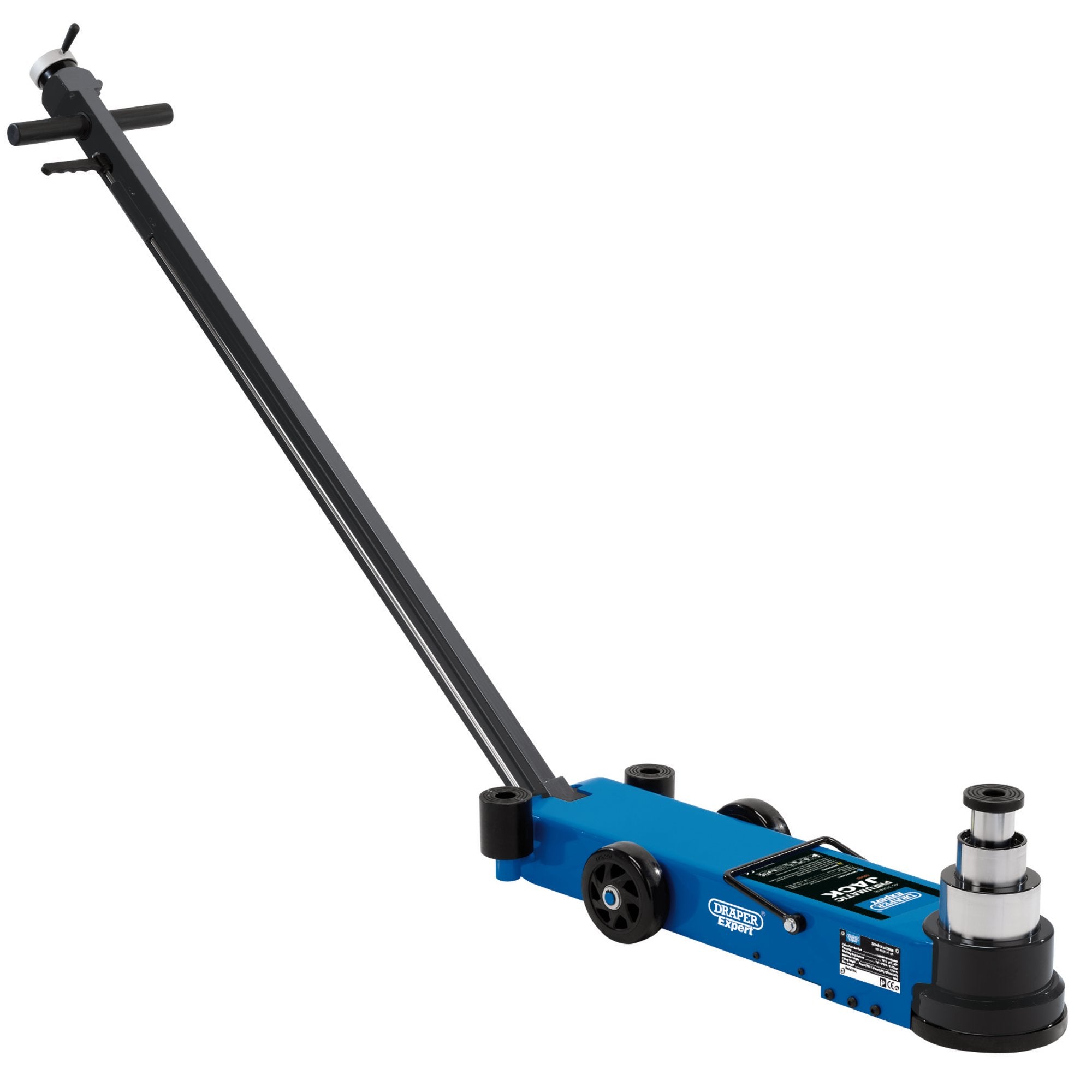

Pneumatic Long Chassis Low Profile Jack, 40 Tonne

In stock
SKU: 2080
Regular price Dhs. 16,014.04
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      Air Consumption: 11.5cfm
      Air Inlet: 1/4" BSP
      Capacity: 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
      Chassis Dimensions: 830 x 179 x 125mm
      Handle Length: 1380mm
      Lifting Height Position 1: 57mm
      Max Height Stage 1: 302mm (inc extensions)
      Max Height Stage 2: 347mm (inc extensions)
      Min Height: 125mm
      Nett Weight: 44kg
      Operating Air Pressure: 9 – 12BAR (130 – 174psi)
      Saddle Diameter: 70mm
      Wheel Diameter: 125mm
      Max Height Stage 3: 396mm (inc extensions)
      Wheel Width: 47.5mm

      Standard

        Manufactured to EN1494 Specification

        Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.

        Features
        • Expert Quality
        • Three stage pneumatic jack
        • Extra low profile, 125mm entry height
        • Long chassis, 2210mm reach
        • ‘Slow Down’ valve
        • ‘Self Return’ switch
        • Twin PP and rubber wheels
        • Industrial seals
        • Supplied with 1/4” BSP inlet and 45mm/75mm extensions
        • Active


        Content
        1 x Pneumatic Long Chassis Low Profile Jack, 40 Tonne

        • Vendor Draper Expert
        • SKU 2080
