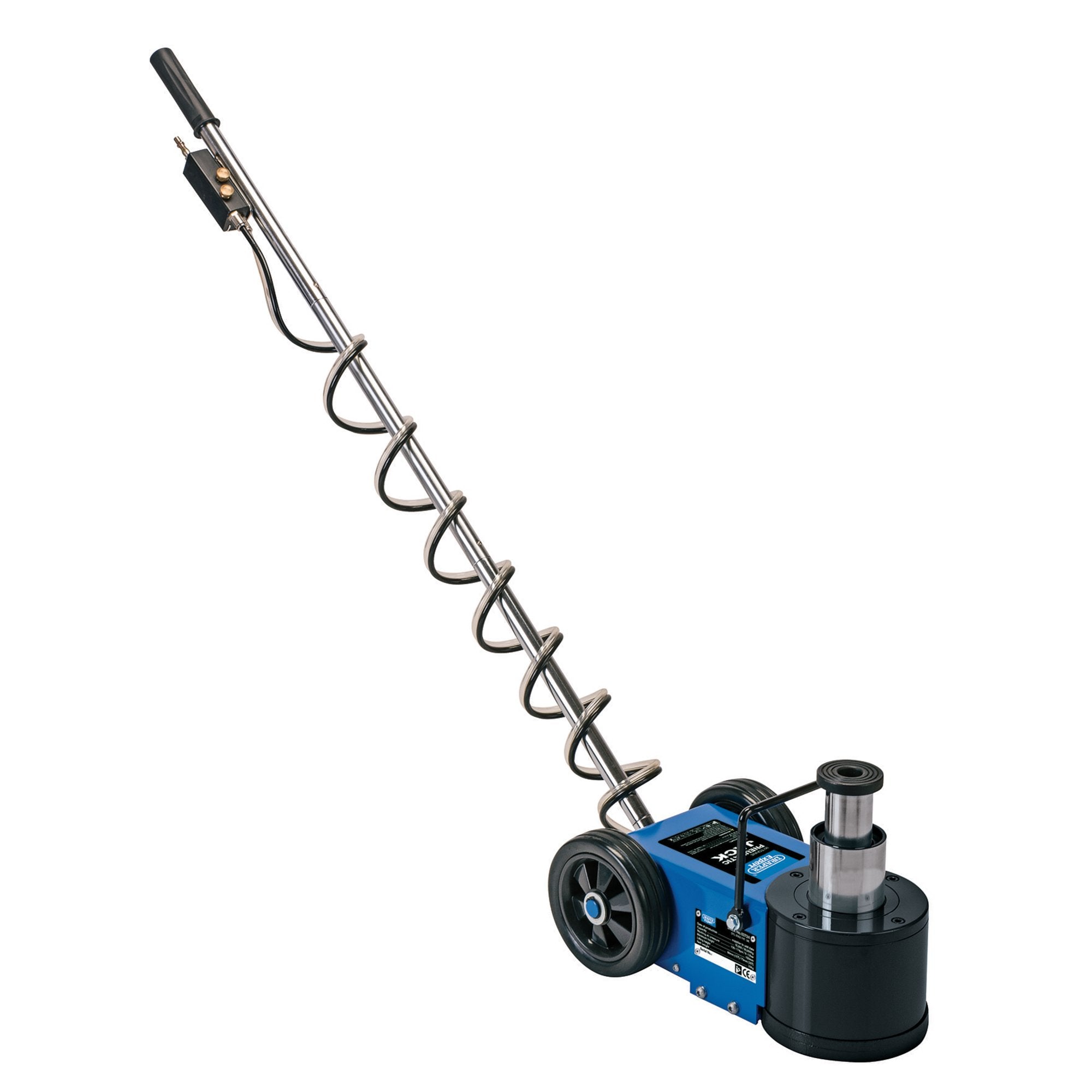

Pneumatic Jack, 30 Tonne

In stock
SKU: 3724
Regular price Dhs. 11,150.81
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      Air Consumption: 10.5cfm
      Air Inlet: 1/4” BSP
      Capacity: 30 Tonne (30,000kg)15 Tonne (15,000kg)
      Chassis Dimensions: 430 x 176 x 150mm
      Handle Length: 1200mm
      Lifting Height Position 1: 73mm
      Lifting Height Position 2: 66mm
      Max Height Stage 1: 343mm (inc extensions)
      Max Height Stage 2: 409mm (inc extensions)
      Min Height: 150mm
      Nett Weight: 30kg
      Operating Air Pressure: 9 – 12BAR (130 – 174psi)
      Saddle Diameter: 70mm
      Wheel Diameter: 165mm
      Wheel Width: 42.5mm

      Standard

        Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

        Features
        • Expert Quality
        • Twin stage pneumatic jack
        • Ergonomic handle grips
        • Slow Down' valve
        • Self Return' switch
        • Twin PP and rubber wheels
        • Industrial seals
        • Supplied with 1/4" BSP inlet and 45mm/75mm extensions
        • Manufactured, tested and certified to the current EN1494 standard
        • Active


        Content
        1 x Pneumatic Jack, 30 Tonne

        • Vendor Draper Expert
        • SKU 3724
