Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

In stock
SKU: 37190
Regular price Dhs. 39,353.02
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      Air Inlet: 1/4"BSP
      Capacity: 680kg (1500lbs)
      Closed Height: 200mm
      Lifting Range: 200-885mm
      Max Height: 885mm
      Operating Air Pressure: 90psi (6.2bar)
      Rear Wheel Removal Panel (L x W): 600 x 250mm
      Motorcycle Loading Ramp (L X W): 850 x 150mm
      Table As For Atv Use (L X W): 1950 x 1220mm
      Table As Motorcycle Lift (L X W): 1950 x 680mm
      Working Height Stops : 550; 720; 840mm
      Weight: 260kg

      Standard

        Manufactured to EN1494 Specification

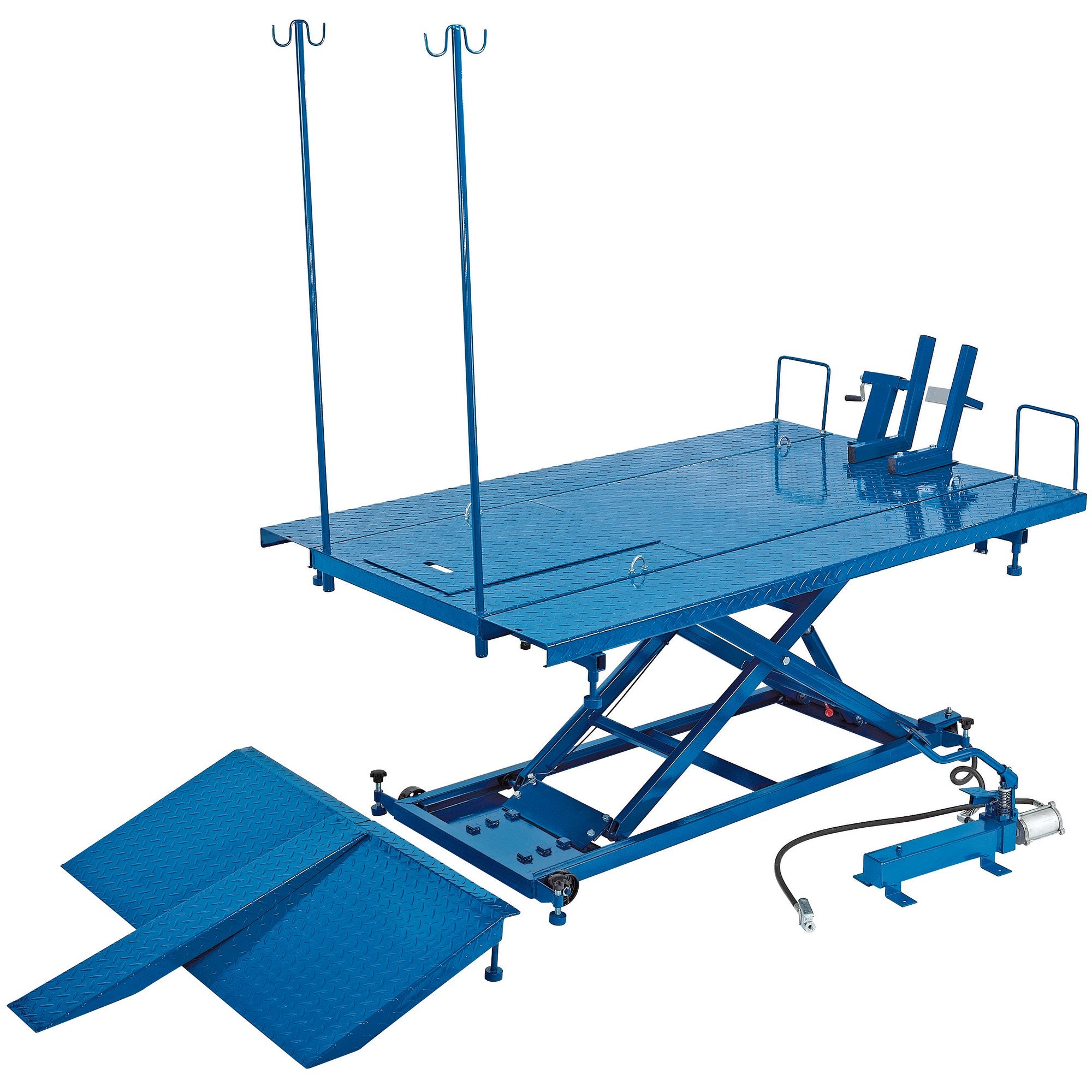

        Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar-sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump-up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.

        Features
        • Manufactured to EN1494-2000 Specification
        • Large lift that supports motorcycles plus all terrain vehicles (ATV), mini tractors and other similar-sized vehicles which can be accommodated by using the supplied additional side platforms for extra width
        • All steel construction with heavy duty foot operated hydraulic pump or pneumatic pump-up system with controller and ram assembly
        • Safety table lock device to prevent accidental lowering
        • Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only)
        • Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use
        • Table surface is stippled for safety and grip whilst loading motorcycles
        • Working table size: 1950 x 1220mm including side extension plates (L x W)
        • Three working heights: 550, 720, 840mm
        • Maximum height: 885mm
        • Active


        Content
        1 x Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

        • Vendor Draper
        • SKU 37190
