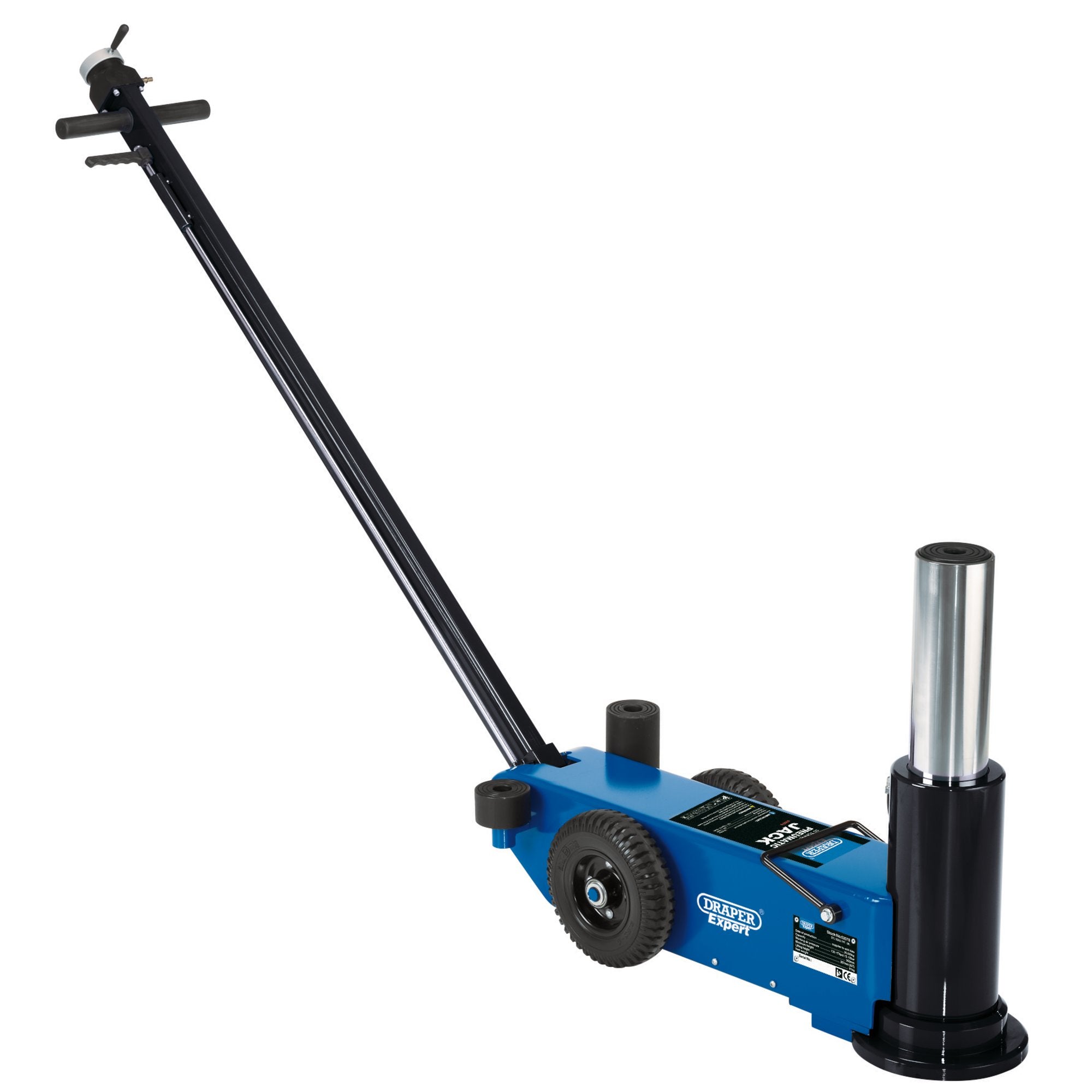

Pneumatic High Lift Jack, 30 Tonne

In stock
SKU: 2078
Regular price Dhs. 21,395.02
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      Air Consumption: 11.5cfm
      Air Inlet: 1/4" BSP
      Capacity: 30 Tonne (30,000kg)
      Chassis Dimensions: 840 x 215 x 360mm
      Handle Length: 1380mm
      Lifting Height: 267mm
      Max Height: 772mm (inc extensions)
      Min Height: 360mm
      Nett Weight: 87kg
      Operating Air Pressure: 9 – 12BAR (130 – 174psi)
      Saddle Diameter: 83.6mm
      Wheel Diameter: 200mm
      Wheel Width: 55.5mm

      Standard

        Manufactured to EN1494 Specification

        Expert Quality, portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

        Features
        • Expert Quality
        • Single stage high lift pneumatic jack
        • Agriculturally focused
        • Ergonomic handle grips
        • ‘Slow Down’ valve
        • ‘Self Return’ switch
        • Twin PP and rubber wheels
        • Industrial seals
        • Supplied with 1/4” BSP inlet and 45mm/100mm extensions
        • Active


        Content
        1 x Pneumatic High Lift Jack, 30 Tonne

        • Vendor Draper Expert
        • SKU 2078
