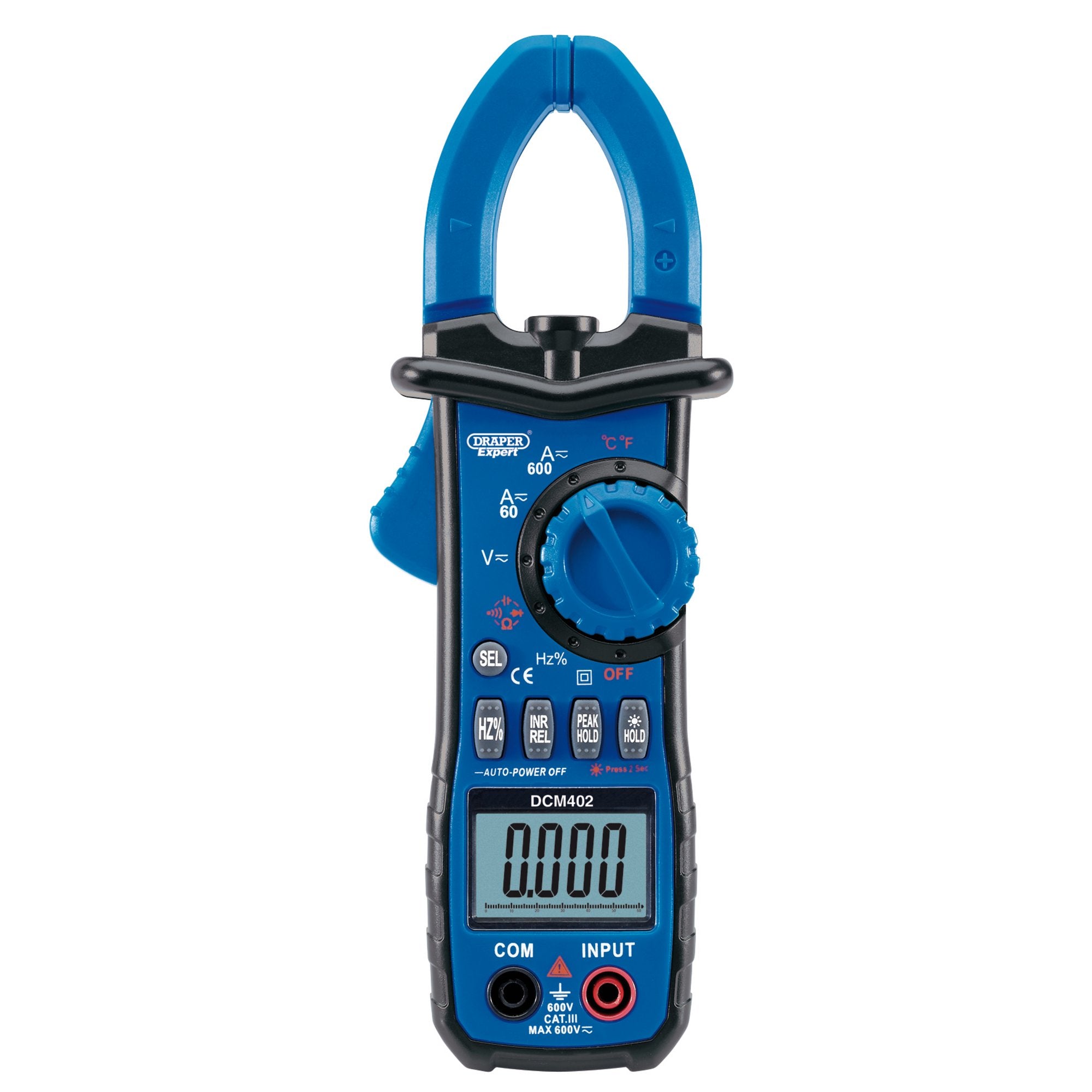

Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

In stock
SKU: 41967
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      AC Amps: 60A/600A
      AC Current: 60A/600A
      AC Voltage: 6V/60V/600V
      Automatic Power Off: Yes
      Battery: 3 x AAA (not supplied)
      Capacitance: 999nF/99.99nF/999.9nF/9.999Β΅F/99.99Β΅F/999.9Β΅F/9.999mF/99.99mF
      DC Amps: 60A/600A
      DC Current: 60A/600A
      DC Voltage: 600mV/6V/60V/600V
      Diode on/off Test: Yes
      Dimensions: 228mm x 158mm x 58mm
      Duty Ratio: Yes
      Dwell: N/A
      Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
      Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
      Symbol Unit Data Hold: N/A
      TACH: N/A
      Temperature: -50 to 300ΒΊC
      Temperature Range: -50Β°C - 1000Β°C/-58Β°F - 1832Β°F
      Weight: 400g (approx.)

      Standard

        Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.

        Features
        β€’ Expert Quality
        β€’ Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
        β€’ Temperature testing
        β€’ Maximum jaw-opening diameter of 36mm
        β€’ Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
        β€’ Supplied with test leads, temp probe and a case
        β€’ Active


        Content
        1 x Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

        • Vendor Draper Expert
        • SKU 41967
