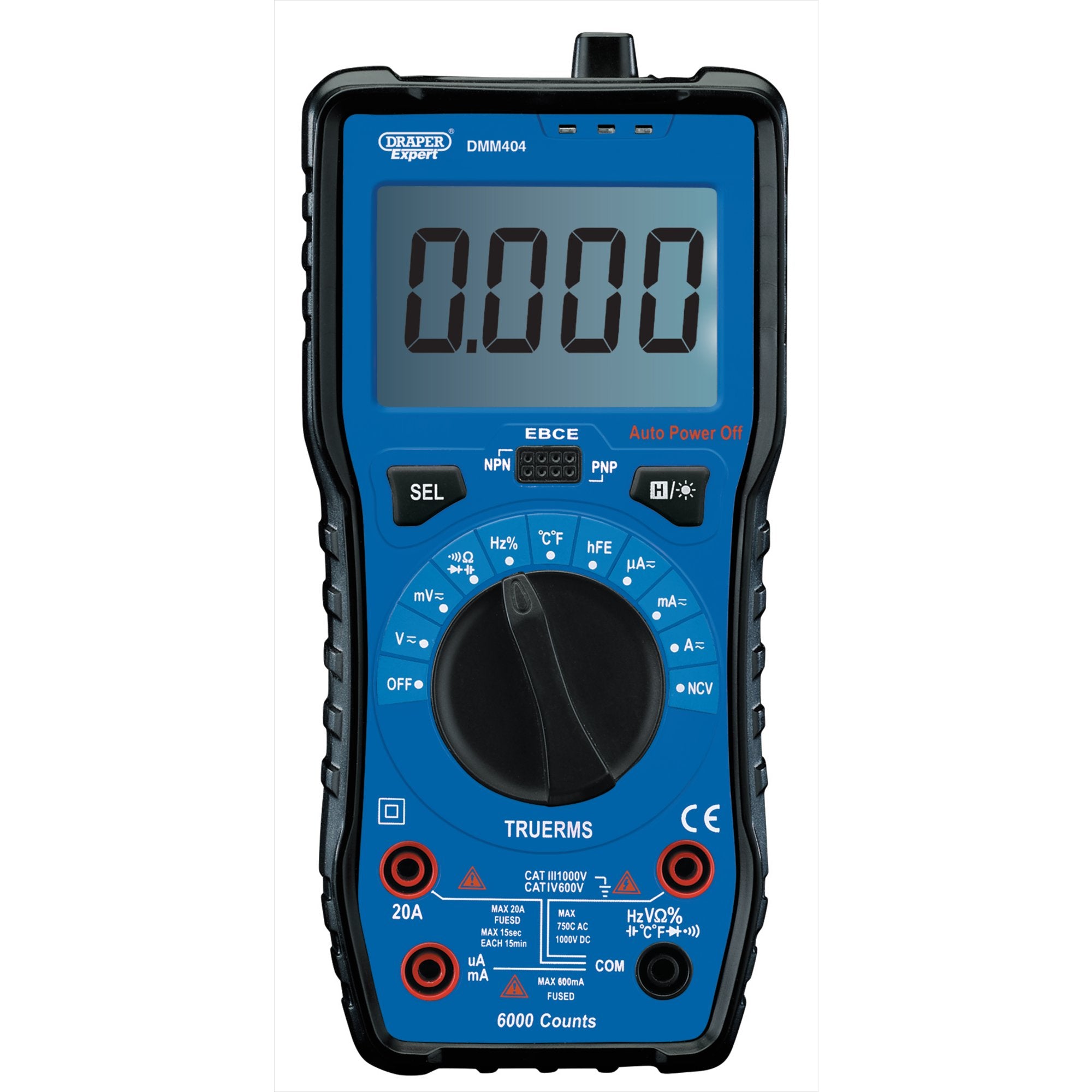

Auto & Manual Ranging Digital Multimeter

In stock
SKU: 92433
Regular price Dhs. 750.43
Pre-order items are dispatched via express courier and typically delivered within 10–14 working days, ensuring speed and reliability.

Warranty

    12 months

    Specification

      AC Current: 60uA/600uA/6000uA/60mA/600mA/20A
      AC Voltage: 600mV/6V/60V/600V/750V
      Automatic Power Off: Yes
      Capacitance: 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
      DC Current: 60uA/600uA/6000uA/60mA/600mA/20A
      DC Voltage: 600mV/6V/60V/600V/0.1V/1000V
      Diode on/off Test: Yes
      Dimensions: 190mm x 90mm x 50mm
      Duty Ratio: Yes
      Dwell: N/A
      Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
      Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
      Symbol Unit Data Hold: Yes
      TACH: N/A
      Temperature Range: -20°C - 1000°C/-4°F - 1832°F
      Weight: 380g (approx.)
      Battery Type: 1 x PP3 9V (not supplied)

      Standard

        Expert Quality, auto - ranging CAT IV multimeter. Equipped with a high - performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power - off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with a carry case.

        Features
        • Large LCD backlit display screen
        • Supplied with probes, battery, bump cover and storage case
        • Auto-ranging CAT IV multimeter
        • High-performance MCU processor
        • Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions
        • NCV (Non-contact voltage) sensor
        • Inspection light
        • An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles
        • Supplied with a carry case
        • Active


        Content
        1 x Bump cover with probe storage
        1 x Set of CAT IV 600V CAT III 1000V 20amp probes
        1 x Magnetic hang strap
        1 x Temp probe
        1 x Storage case

        • Vendor Draper Expert
        • SKU 92433
